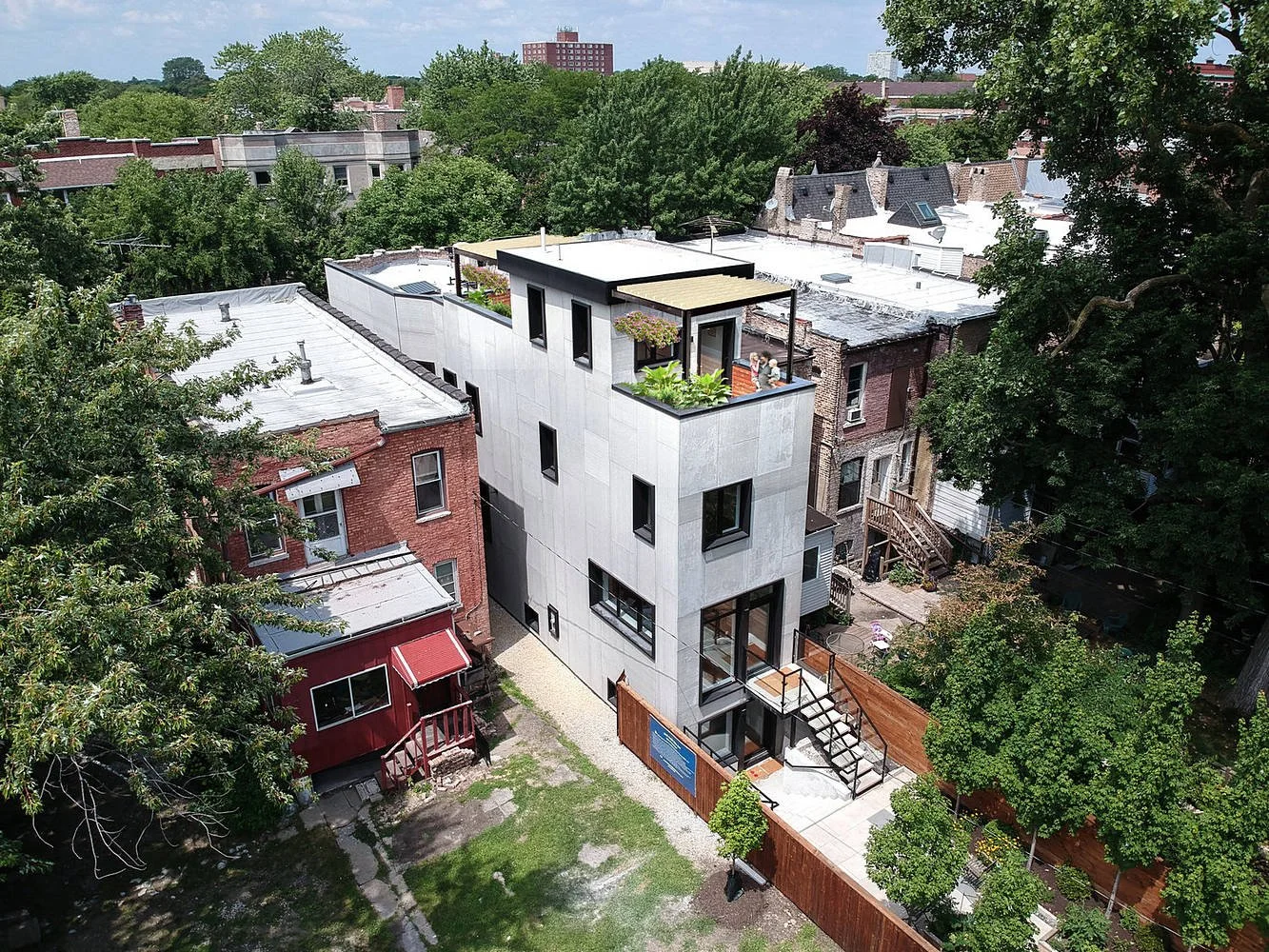

The Project -- Winter 2015/16

**  Comprehensive structural and Mechanical RENOVATION.

**  Passivhaus Institut Certified EnerPHit Building - (July 19, 2019)

**  ~ 90% reduction in energy demand, carbon emissions, and Dust,        Pollen and Airborne bacteria.

**  pristine indoor air and water quality.

**  Remarkably low heating and cooling demand. ~ 9k kWh/yr


Location

5485 South Ellis Avenue, Chicago, Illinois

info@kenwoodpassivhaus.com

312-399-3155


Zoning

  • Zone: RT - 4
  • FAR: 1.2
  • Total Finished Square Feet: ~ 3700 Square Feet
  • Lot: ~ 17 x 164 = ~ 2740 Square Feet
  • Footprint: ~ 1170 Square Feet
  • Third Floor: ~ 220 Square Feet

Ceiling Heights & Volume

  • ~ 9.5’ average height. Rangne 8.5' to 10'.
  • ~ 25,000 cubic feet interior volume.

Options and Additions:

  • Powder room.
  • Garden wet bar.
  • Custom closets

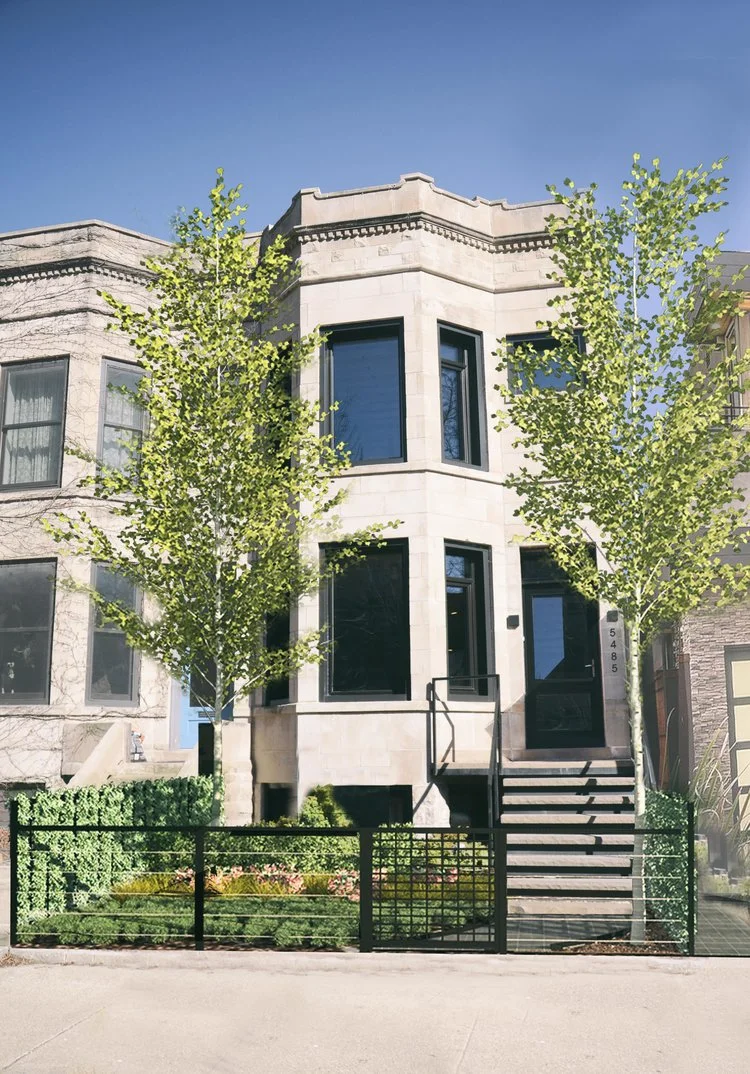

Front -

First Floor

Kitchen Island 1

Masterbedroom

Masterbath - light

Rear

Rear -

Rear -

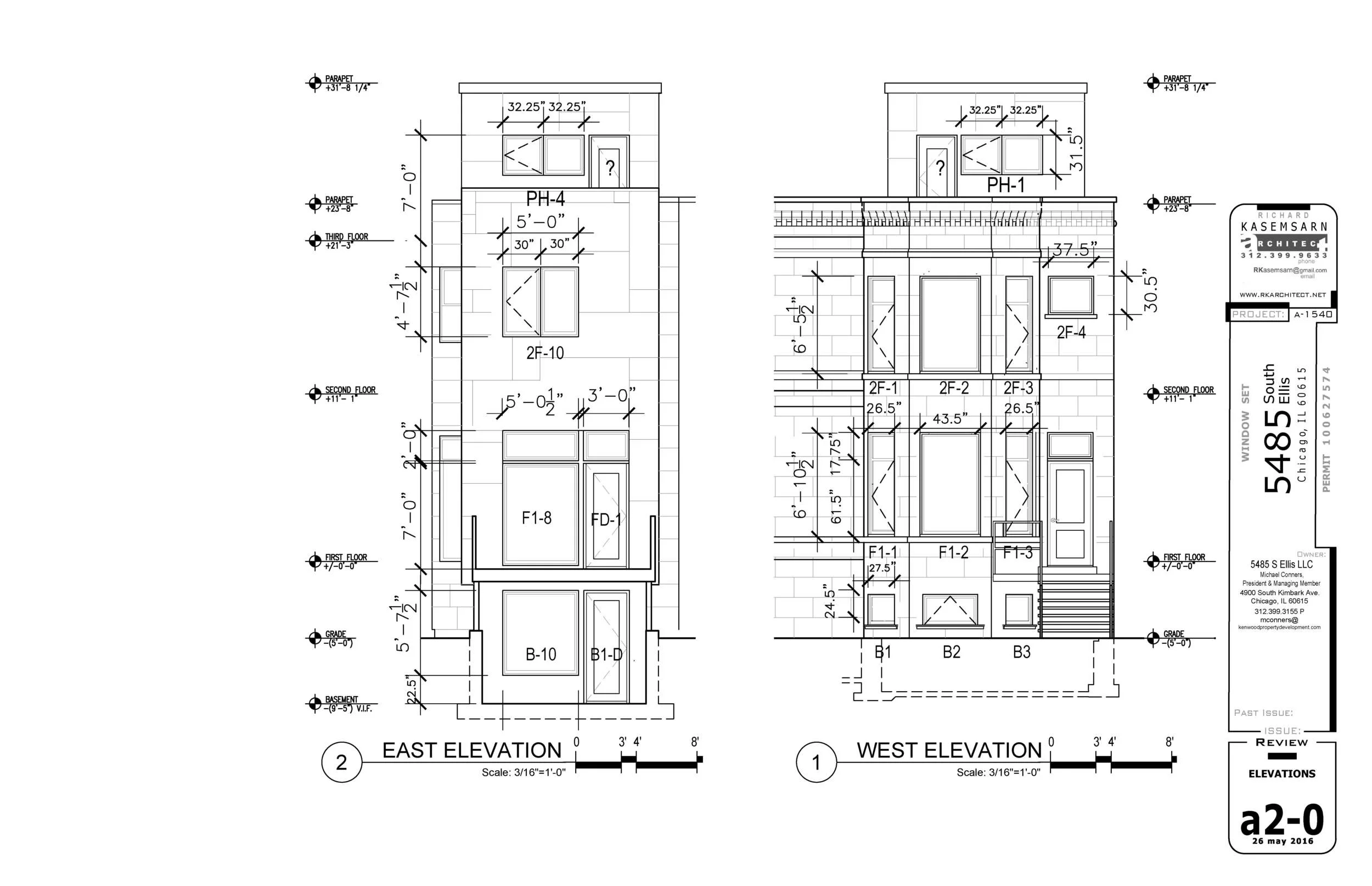

Front and Rear Windows and Doors

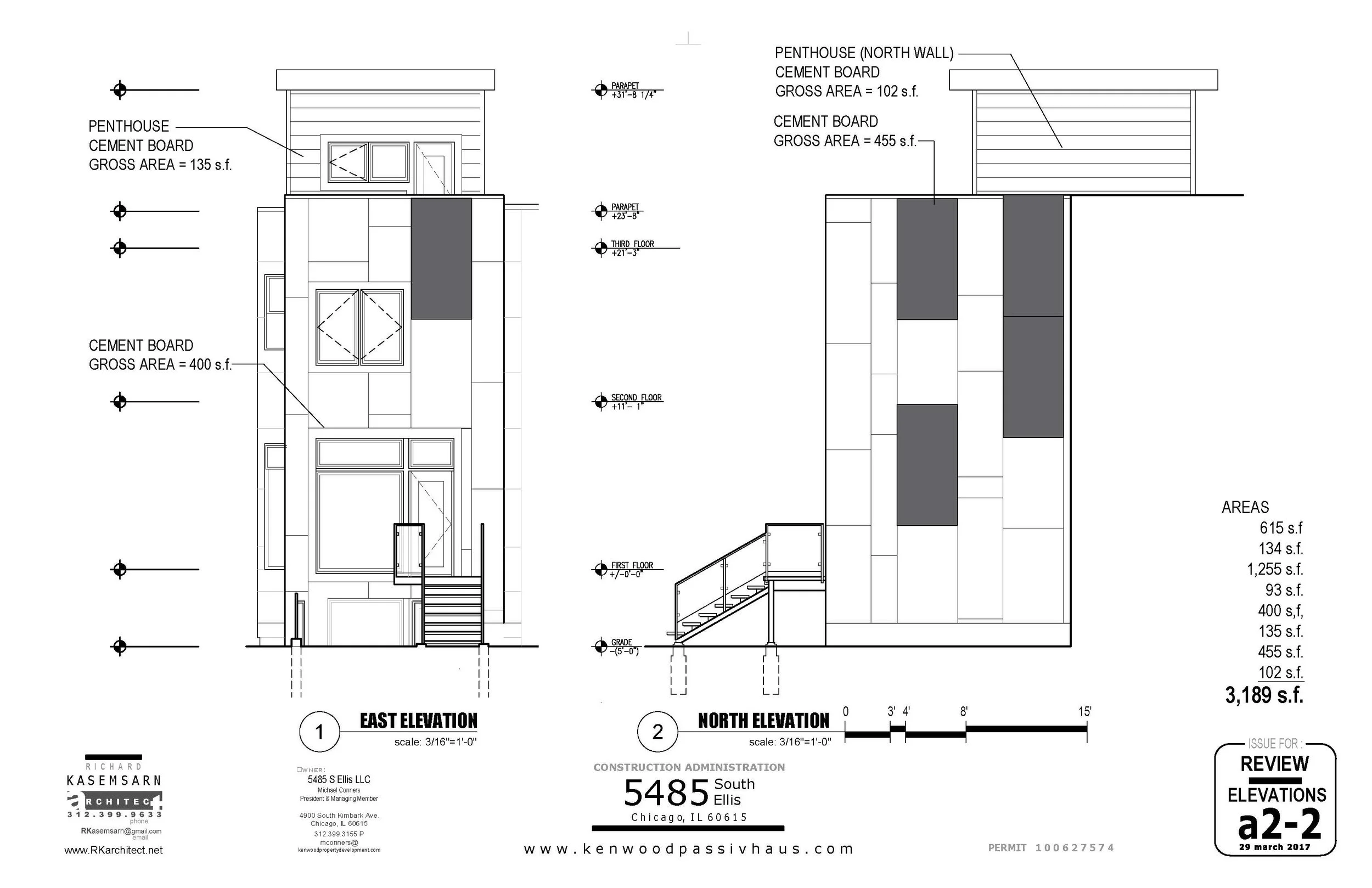

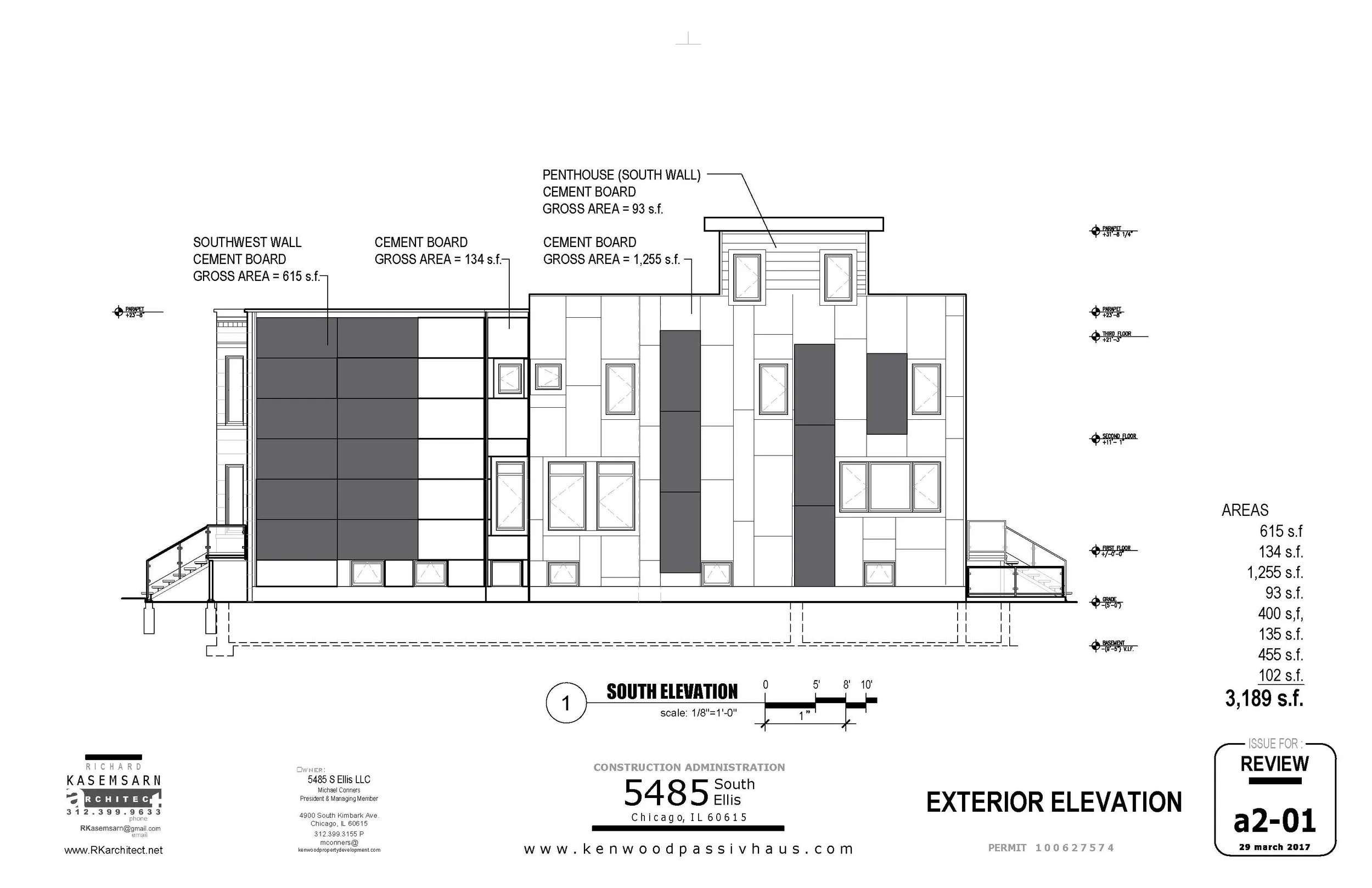

South Elevation


MATTERPORT - Virtually Reality Tour

Click on the link below to experience a fully immersive behind the walls virtual reality tour.

https://my.matterport.com/show/?m=K4F8BKuhCFk&mls=1

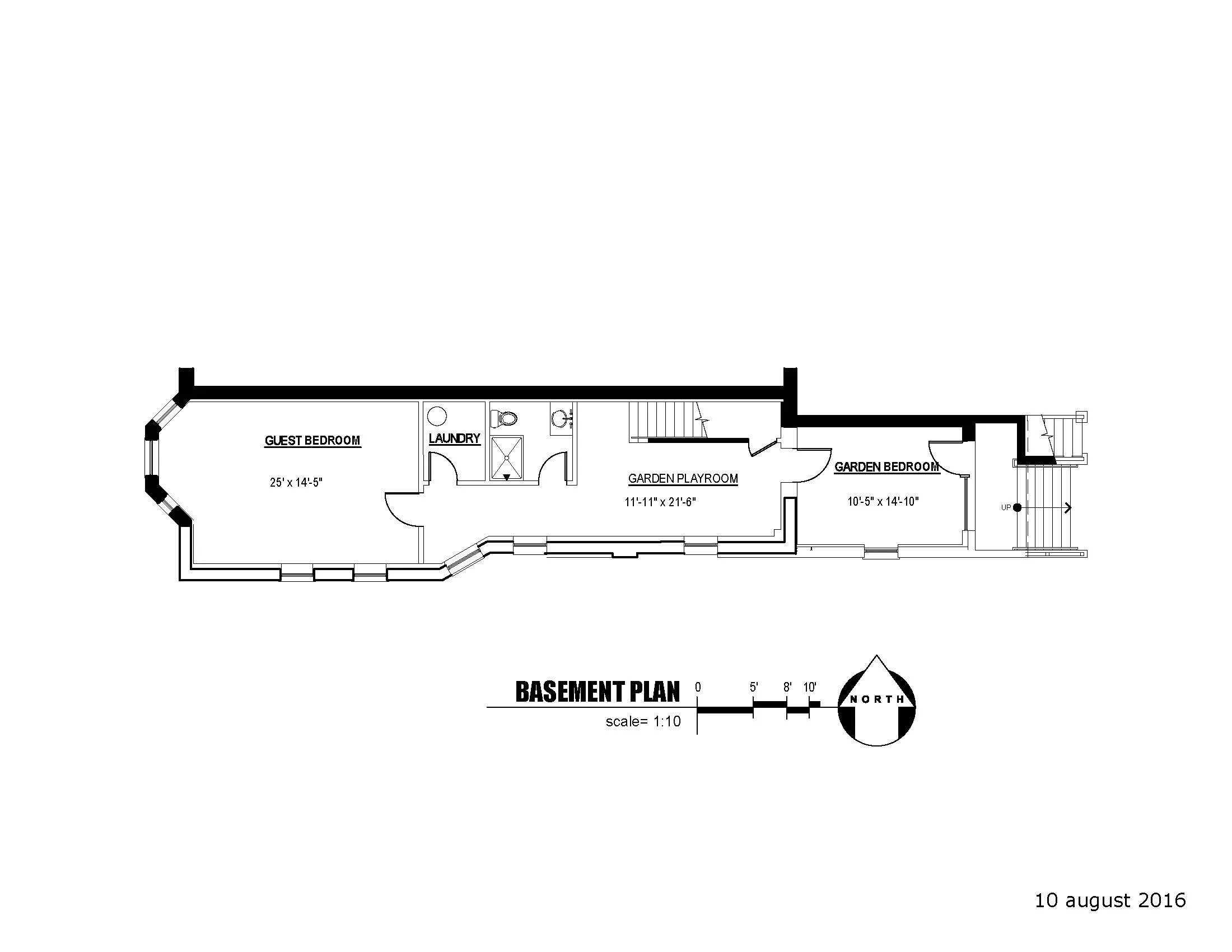

Garden level partition wall option.

Garden Level

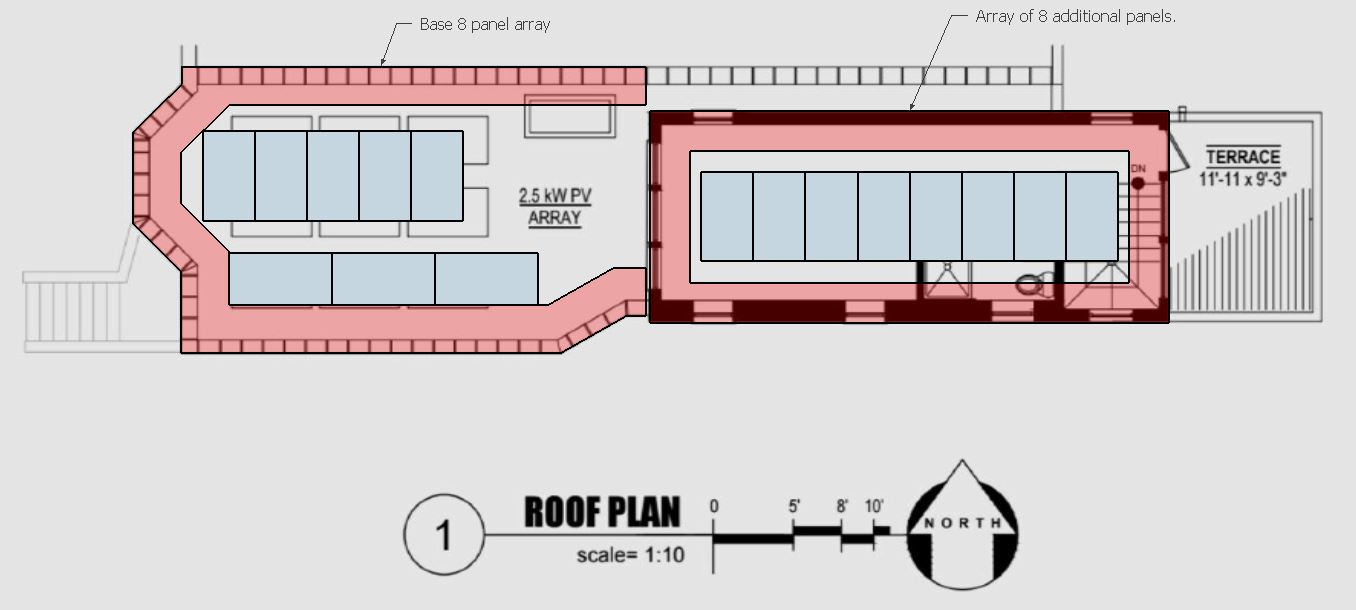

Option 2: Optional grid tied 6 kW photo-voltaic array

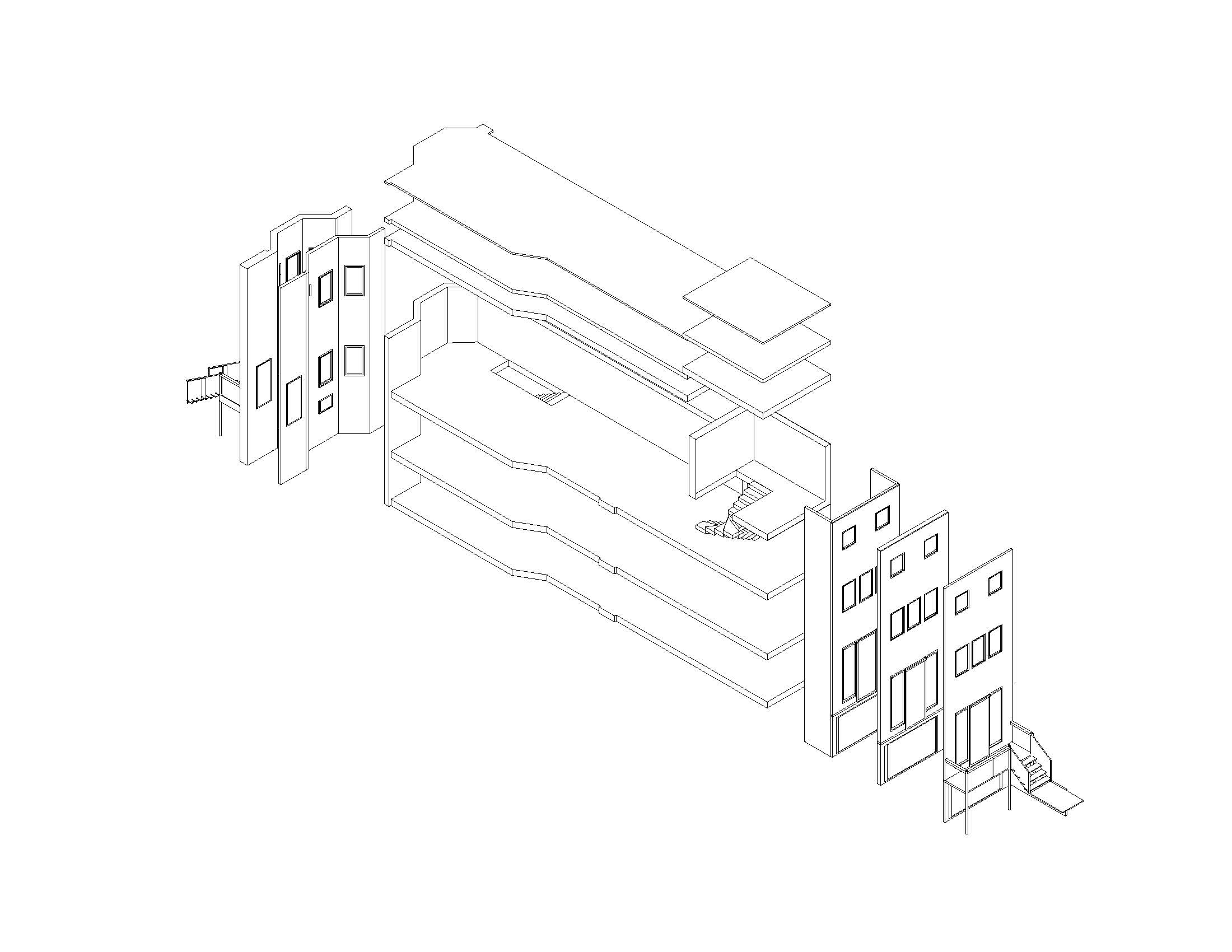

Dollhouse View

Dollhouse View

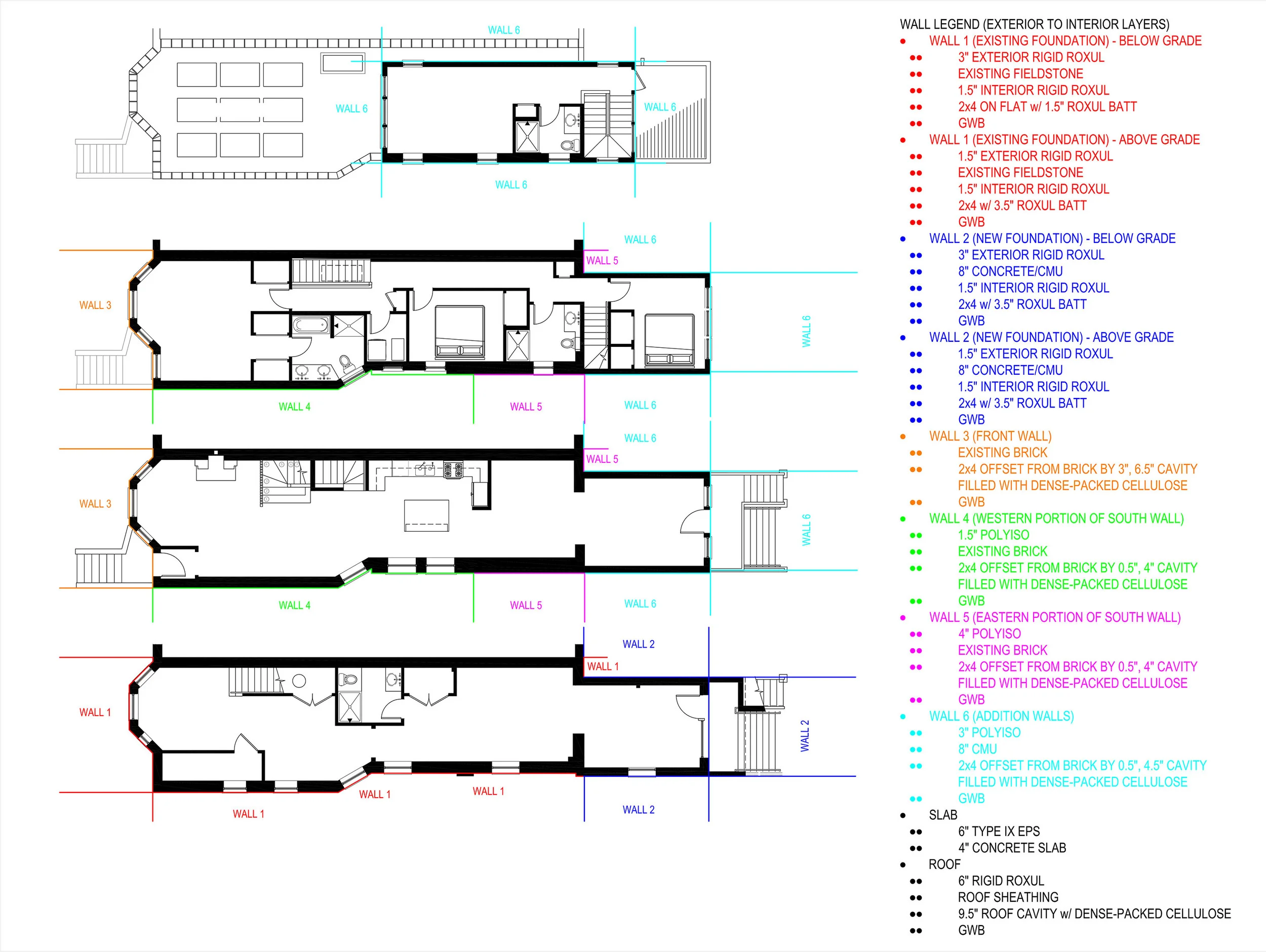

Initial floor plan design with insulation model. November 2015

PHPP - Insulation Model

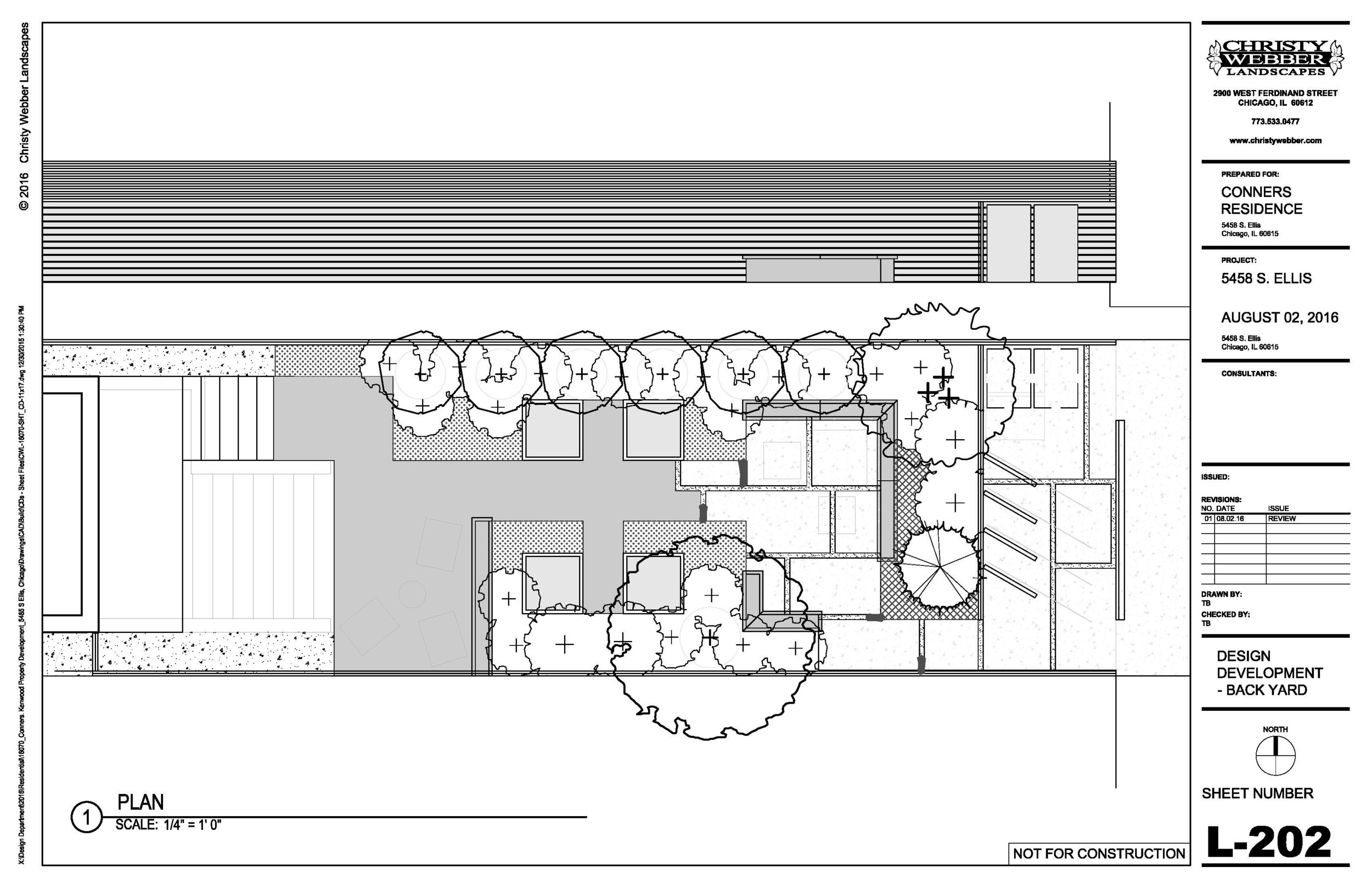

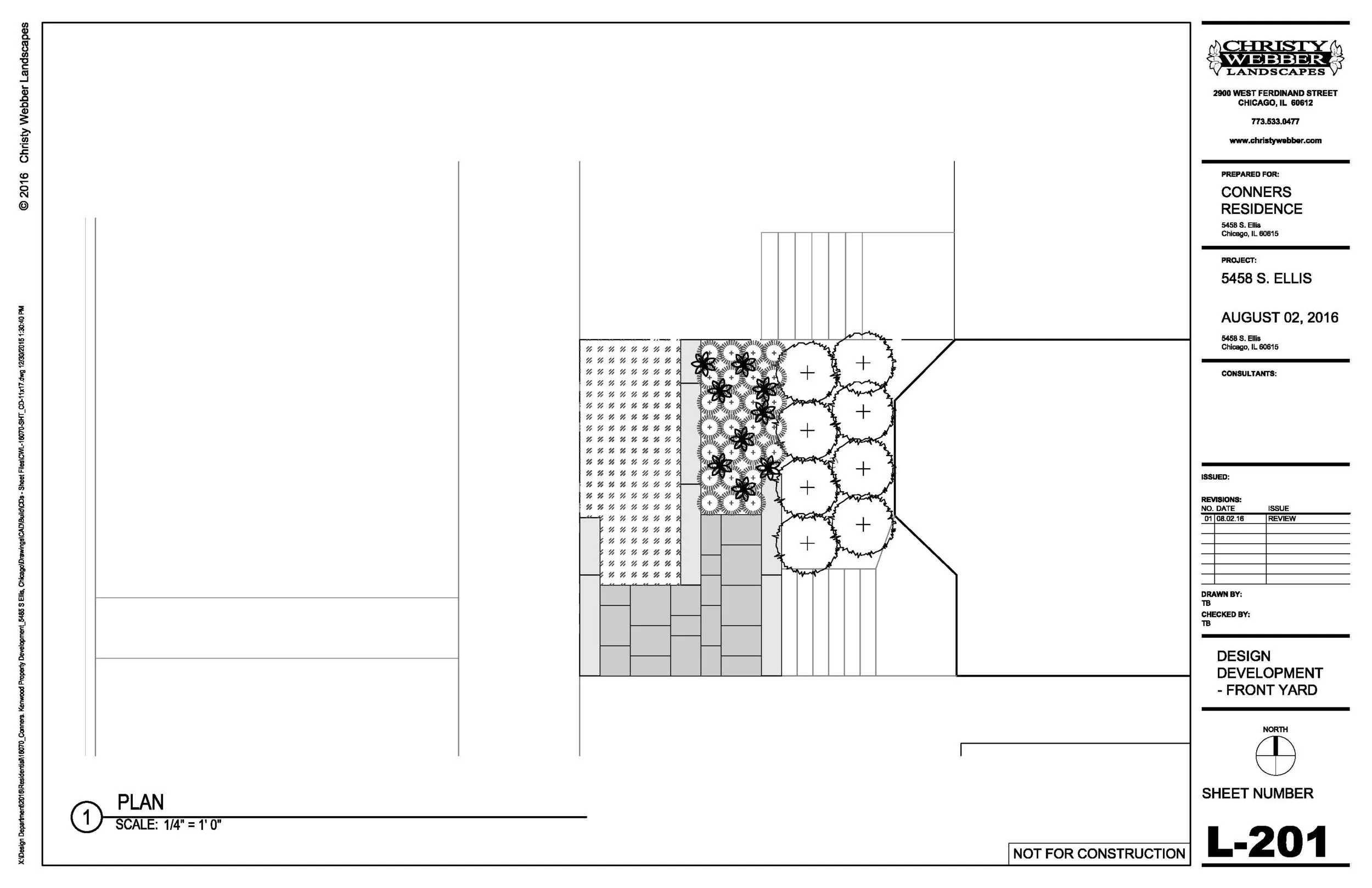

Christy Webber Designs - landscape plan.

Front Yard

Rear Yard

Initial Parking Pergola Concept

Parking Concept 1

Spring 2017

Light Gauge Steel frame. Cembrit HD panels.

Light Gauge Steel frame. Cembrit HD panels.

Initial Garage Concept Spring 2018

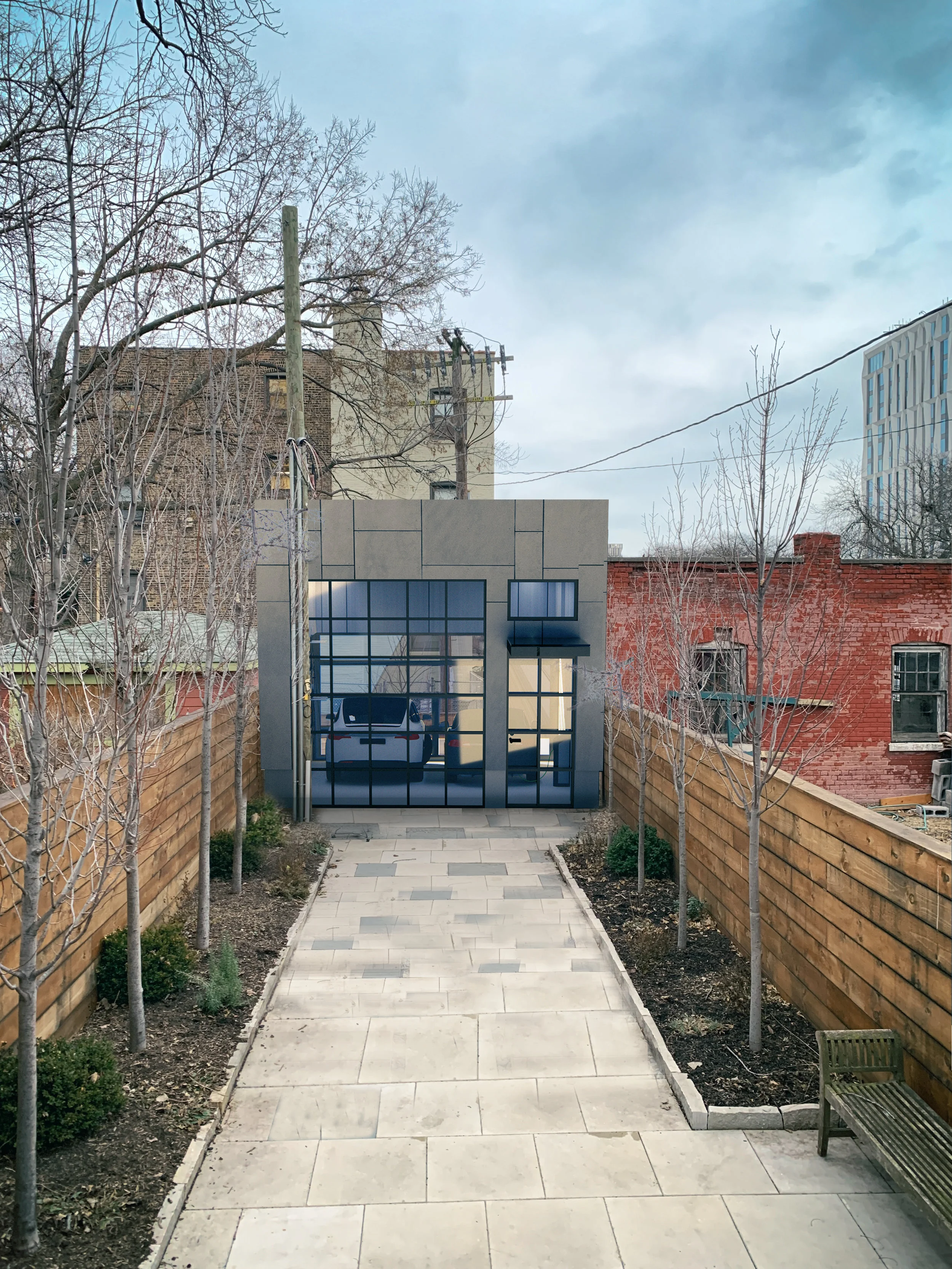

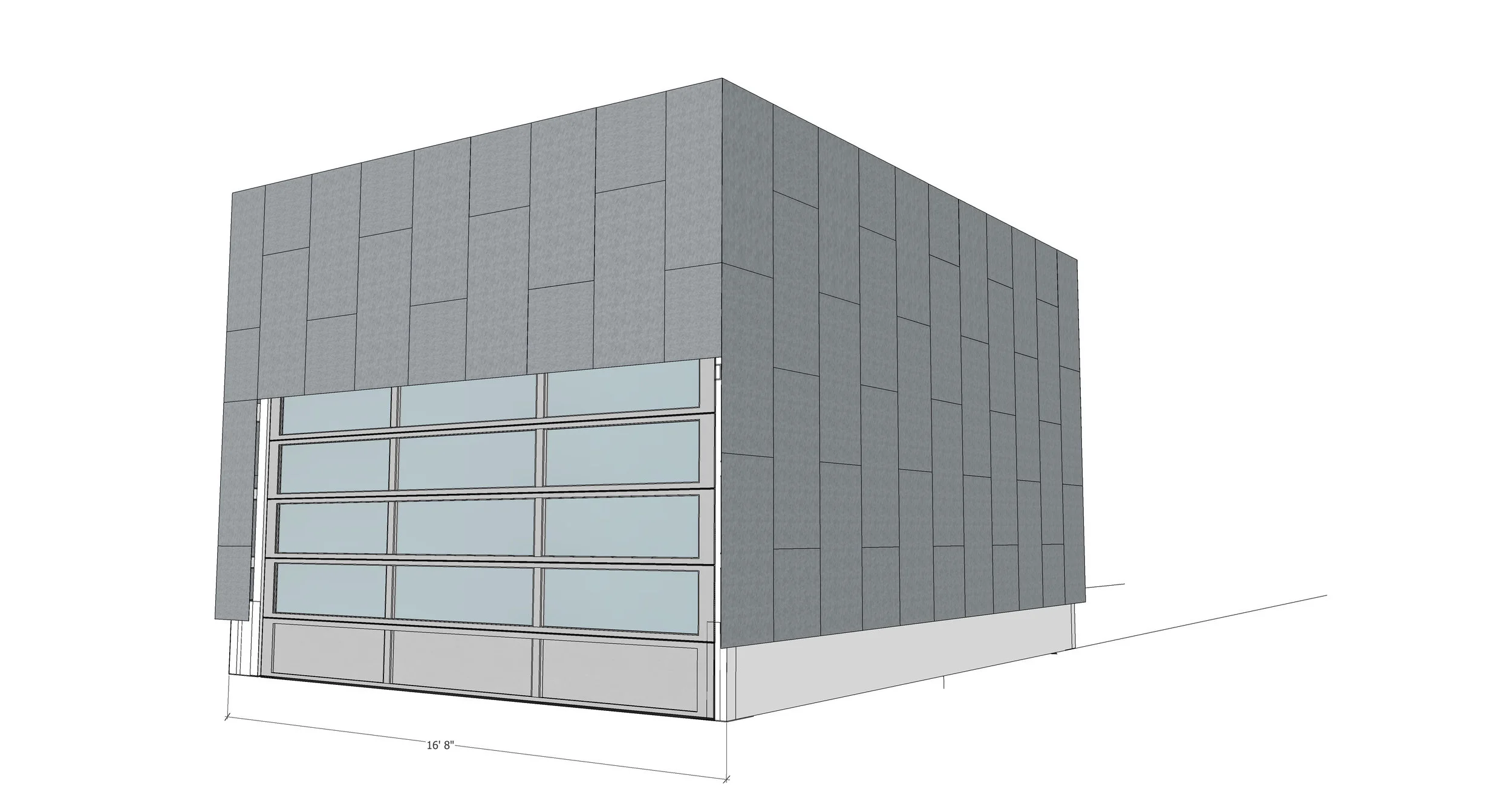

Garage/Studio - January 2019. Final Design Rendering.

Garage/Studio - January 2019. Final Design Rendering.
